Brake Tester & Axle Load LD

Cosber memiliki rangkaian lengkap penguji rem yang berbeda untuk kendaraan tugas berat yang mengikuti pedoman pabrikan mobil dan organisasi penguji. Rangkaian produk modular ini memungkinkan banyak kombinasi untuk memenuhi permintaan pelanggan dan dapat diperluas ke jalur pengujian yang lengkap. Rangkaian produk modular ini memungkinkan banyak kombinasi untuk memenuhi permintaan pelanggan dan dapat diperluas ke jalur pengujian yang lengkap.

Brake Tester & Axle Load

Alat Uji Rem Kendaraan Bermotor dengan kapasitas up to 4 Ton

Scope of delivery :

  1. Hot-dip galvanized roller set
  2. Low-wear corundum rollers:
    1. 700mm (BTC22)
    2. 850mm (BTC32)
  3. Adjustment screws for height adjustment
  4. Wear-free, electronic measuring system
  5. All car brake testers are prepared for upgrading the 4-point-weighing system
  6. Car brake tester fits in all common pits
  7. All car brake testers can be extended to test lane

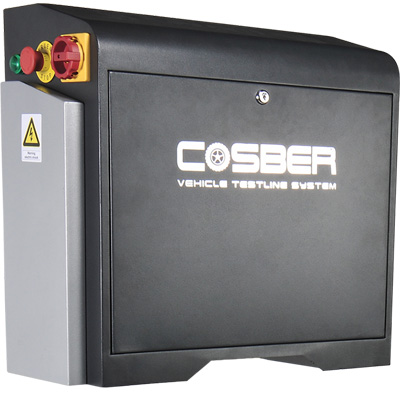

  8. Compact control box
  9. Speed sensors
  10. Manual / automatic mode, delayed automatic switch-on
  11. Start-up monitoring, slip shut-off and shutdown after driving out from the brake teser
  12. Optimized test procedure also suitable for electronic parking brakes
  13. Electromagnetic engine brake as drive out support
  14. Powerful 3kW motors (BTC22-3kW)
  15. Powerful 4kW motors, braking power: >8kN, test load at 50% deceleration: 4,0t (BTC22-4kW)
  16. Test speed 5.1km/h
  17. Four-wheel drive kit, ideal for 4x4 vehicles
  18. Lockable main switch
  19. Large easy-to-read analog display with 2 x 255mm (300°) clocks
  20. Analog display with 16-digit LED display
  21. ASA-Livestream
  22. Wall mounting for control box
  23. Swivel arm for analog display
  24. Fast delivery and installation
  25. Max. test load/axle of 2,7t (BTC22 3kW)
Lifting Device Lifting Device

Features :

  1. High efficiency due to automatic test procedure
  2. Quick detection of all brake measurement data
  3. Guided information showed on the display
  4. Hot-dipped galvanized roller set frame
  5. Test speed 5,1km/h
  6. Test load up to 4t
  7. Extendable to test lane
  8. Ground, column or wall mounted control box
  9. Column or swivel arm mounted analog display (LED) (as option)
  10. 4 Wheel-Drive-Kit (as option)
  11. Electromagnetic motor brake as drive out support (as option)
  12. Roller cover plates (as option)
  13. Robust radio remote control (as option)
  14. Fits into all common foundations (for replacement business)

Aksesori seperti 4WD, tampilan analog, dukungan drive out, dan versi remote control radio tersedia. Karena transportasi yang sangat berkembang di seluruh dunia, bisnis transportasi membutuhkan semakin banyak kendaraan yang beroperasi di jalan raya. Oleh karena itu, keselamatan, khususnya salah satu kendaraan komersial heavy duty (Truck) menjadi isu utama dalam pengujian kendaraan. Bagaimana mendekati hasil tes kinerja keselamatan kendaraan yang paling nyata juga menjadi tanggung jawab sosial bagi Pemerintah selaku pemangku kebijakan atas kelaikan jalan.

  • Dirancang oleh teknik Jerman, dilengkapi dengan motor Jerman dan sensor Jerman.
  • Sistem Penimbangan menggunakan 4 tititk masing-masing sisi.
  • Dilengkapi dengan kit penggerak empat roda, ideal untuk kendaraan 4WD.
PC_Cabinet Digital Analog

Indicator display :

  1. Brake Force
  2. Operating mode: Manual, Automatic, 4x4
  3. User guide
  4. Weight in kg (if weight sensors included)
  5. Digital difference displayed in % at LED display
  6. Road adhesion % for suspension tester
  7. Difference for side slip tester in m/km
  8. Status lights for different operating modes

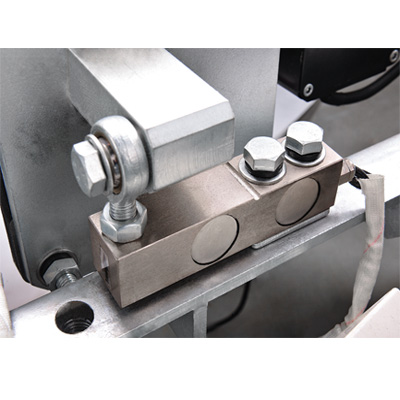

Weight Sensor Cover Plate Testbar Brake Force

Specification :

  1. Test width min: 800 mm
  2. Coefficient of friction dry/wet: > 0.7 / > 0.6
  3. Fuse protection:
  4. BTC32: 3 x 32 A slow-blow
  5. BTC22: 3 x 25 A slow-blow
  6. Motor power:
    1. BTC32: 2 x 4,0 kW
    2. BTC22: 2 x 3,0 kW
  7. Test width max:
    1. BTC32: 2500 mm
    2. BTC22: 2200 mm
  8. Power supply: 3 x 400 V, N, PE 50 Hz
  9. Brakeable performance max:
    1. BTC32: 10,0 kN
    2. BTC32: 6.5 kN
  10. Test speed: 5,1 km/h
  11. Weight: 430 kg
  12. Max. drive-over load: 4000 kg
  13. Roller elevation: 25 mm
  14. Rollerset Height: 240 mm
  15. Rollerset Width:
    1. BTC32: 2620 mm
    2. BTC22: 2320 mm
  16. Roller length:
    1. BTC32: 850 mm
    2. BTC22: 700 mm
  17. Roller diameter: 205 mm
  18. Rollerset Length: 660 mm
  19. Display cabinet Measuring range: 0 - 8 kN
  20. Brake tester Roller set: Hot galvanized
  21. Brake tester Test weight per axle (at 50% braking ratio):
    1. BTC32: 4000 kg
    2. BTC22: 2700 kg
