Axle Play Detector

Alat uji pengecekan komponen bawah kendaraan, Axle Play detector KJX series, adalah alat uji untuk komponen bawah kendaraan seperti tie-road, bolt joint, arm, bearing, yang sangat kuat dan mudah digunakan. Desain mekanik perawatan rendah menjamin masa pakai yang lama. Mode pengoperasian satu tangan memungkinkan pendeteksian kerusakan, keausan dan kebocoran pada bagian bawah komponen kendaraan pada bagian kemudi, bantalan roda, sistem pegas dan suspensi.

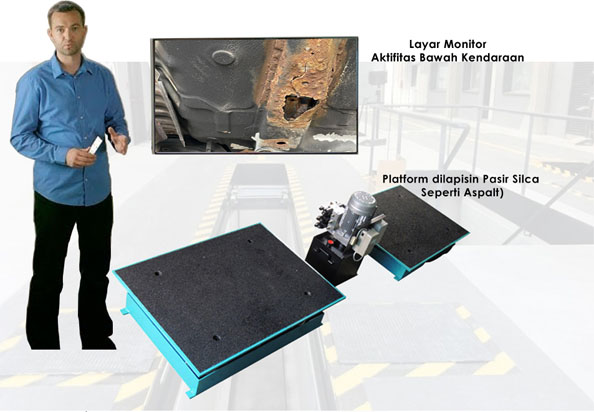

Axle Play Detector Aspalt

Seri KJX adalah detektor putar hidraulik yang digunakan untuk memeriksa kondisi sistem suspensi dan sistem kemudi pada sasis kendaraan. Detektor pergeseran dibuat oleh tiga bahagian: solusinya juga disajikan dengan sejumlah fitur menarik 6 Gerakan, 8 Gerakan, Gandar Ganda, (dengan nirkabel & sensor jarak jauh portable).

Features:

  1. Single control of test plates
  2. Hydraulically operated test plates
  3. Plate movement in counter direction (6 ways) and (8 ways)
  4. Material coatink corundum or asphalt
  5. Check of: axle suspension, axle stub, wheel bearing, tie-rod ends, stabiliser, trolley pivot, twin-axle suspension, trailer coupling device
  6. Easy and convenient operation owing to single-touch mode
  7. Automatic or manual operation at choice
  8. Hydraulic, unit and control cabinet
  9. Radio remote control with LED lamp

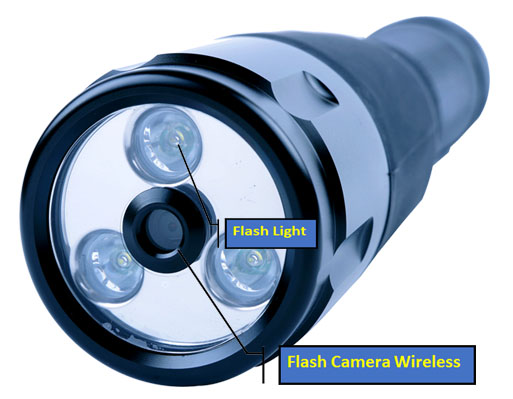

  10. Test lamp with long-life LEDs
  11. Keypad with oil- and petro-resistant foil
  • Standard: European Union Directive 2014/45/EU.
  • Platform material Aspalt.
  • Otomatis parkir sistem (Option).
  • Radio remote control.
Motor Hydraulic Hydraulic Piston Remote Control

Include Accessories :

  1. Foundation tube for basic foundations
  2. Foundation tube for Head light testing places
  3. Hydraulic lines
  4. Neon lights for lighting for pit under check

Specification :

  1. Maximum axle load: 18000kg
  2. Whee Load Range: 9000kg
  3. Dimension: 1000 x 750 mm
  4. Max trust per site: 30 kN
  5. Testing speed: 5-15 cm/s
  6. Needed hydraulic oil amount: 30 Liters
  7. Hydraulic oil type HLP46
  8. Weight: 600 Kg
  9. Max hydraulic pressure: 120 Bar
  10. Motor power: 2.2 kW
  11. Power Supply: AC400V/50Hz with grounding
